THE FIRST MEDICAL DEVICE THAT MONITORS THE QUALITY OF MANUAL VENTILATION DURING CARDIOPULMONARY RESUSCITATION

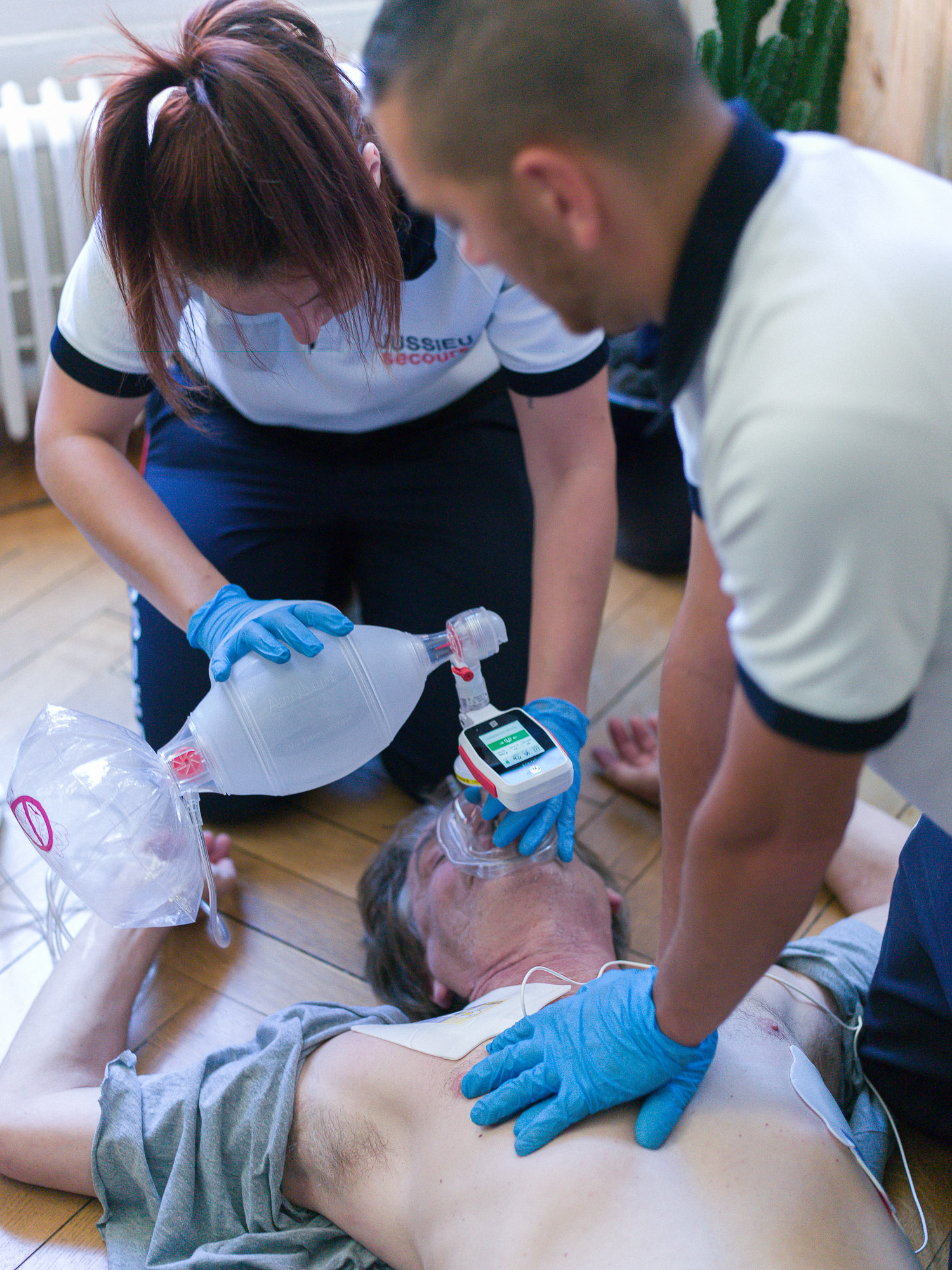

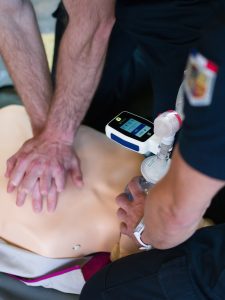

EOlife is a smart medical device that attaches to a BVM to measure the quality of manual ventilation during CPR in real-time.

The system incorporates algorithms that automatically define the target range of ideal ventilation parameters based on the pulmonary profile of the patient and provide real-time feedback and guidance to the rescuer or the medical team.

French company, Archeon Medical has been revolutionising the practice of manual ventilation since 2018. Archeon Medical develops advanced technologies to simplify care and help first aid teams better ventilate patients in life-threatening emergencies.

To learn more about Archeon and EOlife please click here to visit the website.

Overview

Connectivity

EOlife adapts to each BVM (Bag Valve Mask). Compatible with Antibacterial filters.

The Flowsense Sensor

A single-use sensor that measures inhaled and exhaled volumes.

Real-time visualisation and feedback

of Insufflated volume (Vi), Delivered tidal volume (Vt), and ventilation frequency (Freq). Guidance to comply with ERC and AHA recommendations

Ventilation modes

3 patient height settings, with continuous and 30:2 ventilation modes.

Visual alarms

Smart alarm system for leakage, excessive volume, high frequency

Battery powered

Rechargeable external battery with a 5 hour run time.

Ergonomic

Lightweight (150g) with dimensions of 135mm x 75mm

Designed for extreme conditions

Resistant to water and dust splashes (IP44). Operating conditions between
-20°C and 50°C maximum

Innovation

EOlife improves manual ventilation quality by over 70%^I

Reference:

^(I) Khoury A, De Luca A, Sall FS, Pazart L, Capellier G. Ventilation feedback device for manual ventilation in simulated respiratory arrest a crossover manikin study Scand J Trauma Resusc Emerg Med. 2019 Oct 22;27(1):93

There is no High-Performance CPR without

High-Performance Ventilation

In pre-hospital cardiopulmonary resuscitation (CPR), the focus has often been on cardiac compressions, with ventilation sometimes overlooked. However, ensuring effective ventilation is just as crucial, highlighting the need for a more holistic approach that combines both ventilation and cardiac support.

For decades, manual ventilation techniques remained unchanged. Archeon set out to change this by introducing EOlife technology, making advanced ventilation monitoring accessible to all. The EOlife device represents a breakthrough in CPR, providing real-time feedback on oxygen delivery and ensuring personalised, precise ventilation for each patient. This innovation has set a new standard in airway management during CPR.

…What is High-Performance Ventilation?

Provide an adequate volume while minimising the risk of gastric insufflation.

Avoid excessive gas leakage which can result in inadequate ventilation of the patient’s lungs.

Avoid Hyperventilation which creates lung injuries and reduces venous return.

EOlife X

The ultimate tool for High Performance Ventilation training.

EOlife X has the same features as the EOlife, except that EOlife X® enables data download via Bluetooth and can record ventilation parameters in «Blind Mode».

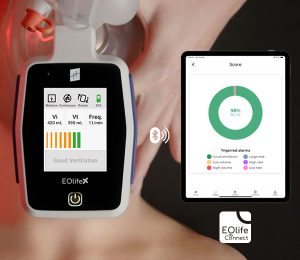

Track your skills progress over time with EOlife Connect App

Thanks to the EOlife® Connect app, you can download and save each of your Training sessions to allow Booster Training and Spaced Learning as recommended by AHA to improve CPR skills retention. (1)

EOlife X® includes a dedicated mode for paediatric ventilation training. It adjusts tidal volumes and target frequencies based on the patient’s age.

Specification

Dimensions (L x W x D) 130 mm x 75 mm x 30 mm (5.11 in x 2.95 in x 1.18 in)

Weight 170 grams ±5 grams (5.997 oz ± 0.176 oz)

Operating conditions

• Temperature from 0°C (32° F) to +40°C (104° F)

• Relative humidity from 15% to 95% (non-condensing)

• Atmospheric pressure from 620 hPa (altitude of 4000 m) to 1060 hPa (altitude of -500 m)

Transient operating conditions (up to 20 minutes maximum)

• Temperature from -20°C (-4° F) to +50°C (122° F)

• Relative humidity from 15% to 90% (non condensing)

Run time max 5 hours

Ingress Protection against solids, dust, and water intrusion

IP44 (configuration in use, meaning the device connected to its battery and sensor)

Measurement accuracy

Volume measurements are based on FlowSense® sensor measurements and are expressed in mL for the BTPS (Body Temperature as Pressure, Saturated).

The measurement accuracies of the parameters displayed on the screen are as follows:

• Vi (insufflated volume): ± 4.9% of the actual measured value under normal conditions of use

• Vt (tidal volume): ± 5.5% of the actual measured value under normal conditions of use

• Freq (ventilation frequency): ± 1 cycle per minute

FlowSense® data:

• Flow range: ± 250 slm (standard liters per minute)

• Dead space: < 10 ml

Note : Some types of BVM may affect the measurement accuracy due to their design (non-laminar outgoing airflow). A slight measurement deviation may be observed but has no impact on compliance with regulatory requirements.
