A REVOLUTIONARY DEVICE CONCEPT
The corpuls3 offers a unique device concept to address the challenges rescuers face in their versatile workspace.
corpuls3
Overview
0%
Modular design
More flexibility through division into three function sections.
Energy Management
Intelligent algorithms ensure the best battery utilisation between the three modules.
Versatile Mounts
BS EN 1789 approved, space saving brackets for all scenarios.
Advanced Communication
Uninterruptible monitoring from the EMS site into the hospital.

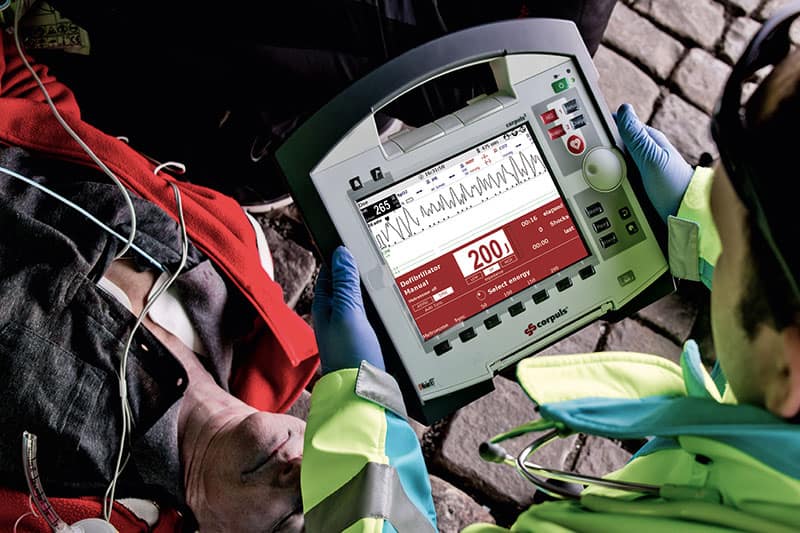

Full Control
corPatch CPR sensor provides immediate feedback to the clinician and ensures high quality CPR.
8.4” Configurable Colour Display
Up to 6 waveforms and 13 vital parameters can be displayed simultaneously.
8.4kg Weight
Total operational weight including bags, three batteries, leads, paper etc.
Operating Temperatures
Use under extreme conditions (IP55, operating temperature -20° to +55°C).
Features
THREE MODULES, FLEXIBLE APPLICATION
The corpuls3 offers an entirely new and revolutionary design-concept compared with traditional compact defibrillator/monitoring devices. It is designed as a complete modular system and can be split into:
With the flexibility to split the modules at any time, the three modules of the corpuls3 communicate wirelessly and adapt to the requirements of the paramedic on scene, or inside the ambulance. This means unrivalled ergonomics, functionality and flexibility.
“The corpuls3 is very much a complex yet capable electronic medical device. When understood, it is robust, reliable, adaptive, and accurate in the pre-hospital phase. The back-up service is quick, effective and open to challenge.”
Lee Salmon , Aircrew Critical Care Paramedic – Great North Air Ambulance
Monitoring Unit
The detachable Monitoring unit guarantees easy handling and provides an ergonomic solution for pre-hospital situations.
- Jog-dial, softkeys and function keys for intuitive, fast and immediate access and operation
- Large colour display (8,4”) with individually configurable display views and 12 lead diagnostic ECG preview
- Integrated LAN or GSM for data transmission with corpuls.mission
Patient Box
The Patient box is the “heart” of the system and enables uninterruptible monitoring from the EMS site into the hospital.
- The immediate feedback on depth and rate of thorax
compressions of corPatch CPR ensures high quality CPR and improves the outcome of patients - Simultaneous 12 lead diagnostic ECG with optional measuring and interpretation software
- Innovative Masimo® Rainbow® SET technology for
measurement of SpO2, SpCO, SpMet, SpHb, PI and PP
Defibrillator
Greater mobility and flexibility due to weight reduction if the
defibrillator is not needed.
Enhanced therapy options with smart metronome during CPR
Pacing: fix, demand and overdrive pacing with ramp-down mode Optional usage, with corPatch therapy electrodes or shock spoons.
Battery Management
SOPHISTICATED ENERGY MANAGEMENT
The best energy management is the one you don’t have to think about.
When you take the corpuls3 out of the charging mount in the vehicle it is ready for operation. As soon as the device is returned to the mount the batteries are charged automatically and the corpuls3 is ready for its next job. Time-consuming and fault-prone manual charging and changing of batteries is not required and the user can fully concentrate on the patient.
The batteries of all three modules are identical and extremely powerful. Intelligent battery management algorithms ensure the best battery utilisation between the three modules, and in compact mode (as one unit), they simply use the battery reserves of the other modules. This concept always provides sufficient power even in long deployments to ensure comprehensive monitoring and therapy with the defibrillator/pacemaker.
- Battery life of up to 1333 hours as a compact device
- A complete charge of the batteries in the device takes approximately 2 hours
- Display of the remaining battery life on the monitor’s display and on the patient box
- Charging via 12 V DC or 100V AC – 240V AC (50 Hz – 60 Hz) via magnetic contact (MagCode)
- Operation as a compact device even if up to two batteries are discharged
Brackets
VERSATILE BRACKET SOLUTIONS

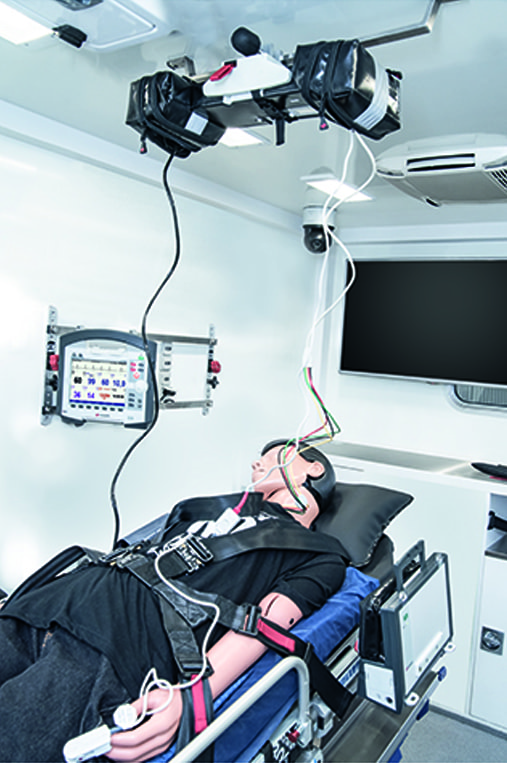

Manufacturer designed BS EN 1789 approved, space saving brackets for all scenarios. Designed to be mounted on the Ambulance trauma wall, with integrated 12V magnetic charging power supplies.
The brackets have a unique release mechanism that allows for a controlled, safe and secure dismount and straightforward placement. Solutions include a bracket for the single compact unit, as well as options for each module individually including a secure attachment for the patient unit to mount on to the side of a stretcher.
Monitor mount
- Shallow installation depth, low weight
- Also fits monitor and patient box combinations
- 12 V DC, 100V AC – 240V AC (50 Hz – 60 Hz)
Patient box mount
- Adaptation options to standard stretchers with wheels
- Easy adaptation and unlocking
- 12 V DC, 100V AC – 240V AC (50 Hz – 60 Hz)
Compact device / defibrillator mount
- Can be unlocked with one hand via the handle
- Self-locking after 10 seconds
- 12 V DC, 100V AC – 240V AC (50 Hz – 60 Hz) batteries are discharged
Telemedicine & Data Management
Telemedicine & Data Management

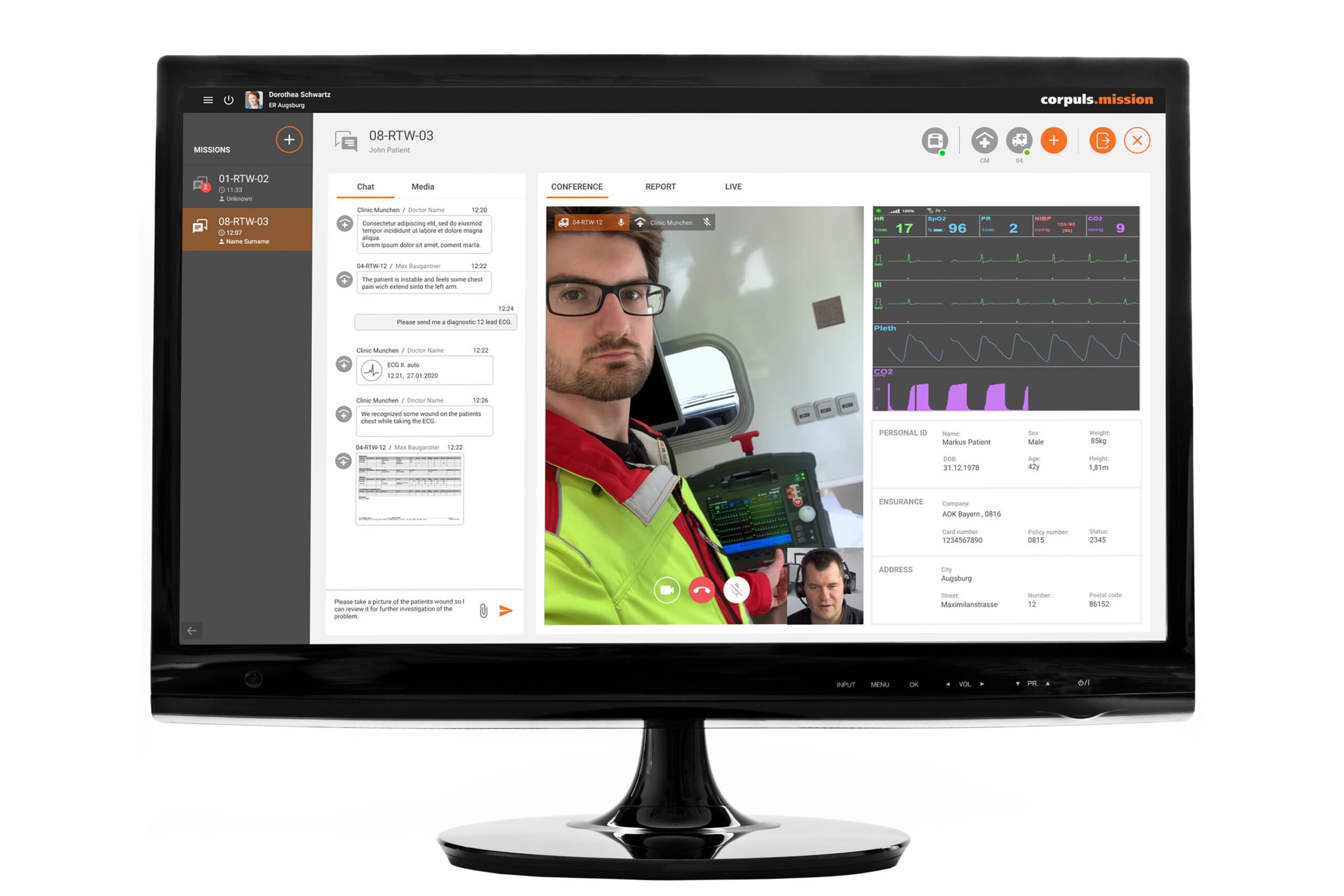

corpuls.mission is not just a telemedicine solution – it is a medical communication platform in which the patient is brought into the main focus.
Specific knowledge from selected experts and various disciplines is crucial for adequate patient treatment. With corpuls.mission, we draw knowledge together where it is most urgently needed: during a mission.
By combining medical data, chat, video and documentation, all relevant information is collected in one place and can be viewed by the rescuers, physicians and specialists involved.
Specifically designed for the special requirements of preclinical use, corpuls.mission breaks away from old, linear communication channels. It offers the possibility to view diagnostic ECGs and photos of medication plans or mission sites as well as the live waveforms and vital parameters* of the corpuls3T and corpuls3. All of this in the usual corpuls quality.
The mission does not end when the case is closed. The recorded data is your key to the continual improvement of mission processes. Not only does this benefit future patients, but also the efficiency of your organisation. With corpuls.manager you combine this “loose” data and generate new knowledge from it. Retaining an overview – and control of your data. Delve into the details of a single mission or look at your missions as a whole. Automatic mission upload means that the latest information is always available to you, displayed in clear graphics and diagrams. Supported by artificial intelligence, you will discover new connections and save evaluation time.
Medical Fields
Mission Critical Fields
Emergency Medical Service
People trapped in cars after a traffic accident, reanimation in a small bathroom, trapped survivors or transport through a staircase – emergency medical service calls are very versatile just as the demands on personnel and devices. With its modular design, the corpuls3 offers an optimum degree of ergonomics and flexibility in almost any situation.
Military
Regardless of whether in rough terrain, in deep snow or in a sandstorm: the corpuls3 reliably provides extensive patient data even in the most adverse weather conditions and most versatile application situations. It is therefore the ideal patient monitor/defibrillator for military use.
Air Rescue
Almost every patient who is transported in a helicopter or aeroplane is in critical condition and must be permanently and extensively monitored. The stress factor increases enormously due to time pressure, tight spatial conditions and loud volume. The innovative device concept of the corpuls3 optimally supports the response staff.
Hospital
In a hospital environment the corpuls3 can be applied in almost any area due to its versatility: as a modular transport monitor for intensive care patients, as a 12-channel rest ECG device in the emergency room or as a defibrillator that is integrated in the hospital’s reanimation concept.
Specification
Technical Specification
General:
- Dust and splash proof (IP55).
- Vibration and shock-proof according to DIN EN 1789.
- Li-Ion Battery (3 batteries, identical in construction).
- Power supply 12 V DC, 100-250 V AC with mains adapter.
- Dimensions (HxWxD): 29.6 x 30.5 x 19.5 cm.
Connectivity:
- LAN / WIFI
- GSM / UMTS
- Bluetooth
Monitoring Unit:
- 8.4” colour display, transflective, backlit.
- 6 waveforms / 13 vital parameters.
- All-around impact protection.
- Printer: paper width 106mm, paper
length 22m. - Weight: 2.8kg.
- Dimensions (HxWxD): 29.5 x 30.5 x 12
Patient Box:
- corPatch CPR feedback sensor.
- 12 lead diagnostic ECG, HR, BR, NIBP, CO2, 4xIBP, 2xTEMP, SpO2, PP, PI, SpCO, SpMet, SpHb.
- CompactFlash storage.
- Acoustic alarm: microphone for voice recording.
- Storage bag for cables and sensors.
- Weight: 1 – 1.4kg (without accessories).
- Dimensions (HxWxD): 13.5 x 26.5 x 5.5 cm.
Defibrillator / Pacer Unit:
- Biphasic, rectangular waveform, full impedance compensation.
- Pacing and cardioversion functionality.
- AED protocol according to the current ERC / AHA guidelines.
- 2 to 200 Joules, configurable energy protocol.
- SmartMetronome.
- Weight: 2.3kg (without accessories).
- Dimensions (HxWxD): 22 x 28 x 12 cm.
