COMPACT, LIGHTWEIGHT AND VERSATILE
The corpuls1 is a life-saving defibrillator/patient monitor that has been specifically developed to meet the requirements of hospitals, fire fighters, first responders and advanced patient transport teams.
corpuls1
Overview
0%
Defibrillator / Pacemaker
Can be used as AED, manual defibrillator or pacer, capable of external pacing in FIX or DEMAND mode.
Patient Monitor
5.7” backlit colour display can show up to 3 curves and up to 4 vital parameters.
Pulse Oximetry
Integrated pulse oximeter enables the monitoring of blood oxygen saturation, pulse rate and the display of the plethysmogram.
Energy Management
The powerful lithium-ion battery supplies up to 13 hours of monitoring or 230 shocks at the maximum energy level.
Sturdy Bags
The leads, sensors and accessories are stored safely and easy to access via the side bags.
Compatible
Batteries, sensors, corPatch electrodes and all leads are fully compatible with corpuls3.
2.2kg Weight
Total operational weight including battery.
Operating Temperatures
Use under extreme conditions: -20° to +55°C. IP55 (Dust and water jet protected).
System
Monitoring
The intuitive user interface guarantees easy operation. On the 5.5” screen you can keep an eye on vital parameters such as ECG, heart rate, plethysmogram. Up to 3 curves and 4 vital parameters can be displayed at the same time.
Resucitation
The corpuls1 can be used AED (automatic external Defibrillator) or manual mode making it the ideal partner for all levels of medical staff.
Pacer
Despite its compact size and minimal weight, the corpuls1 includes an integrated pacer that is capable of external pacing in FIX or DEMAND mode.
Pulse oximetry
The integrated pulse oximeter enables the monitoring of blood oxygen saturation, pulse rate and the display of the plethysmogram.
First Responder
Comprehensive and early emergency care is essential to assure the best possible patient outcome. The corpuls1 shock pads, sensors and leads also ensure that ongoing treatment by the ambulance services using the corpuls3 can be performed without compromise as they carry the same footprint.
Concept
The intuitive and easy operation of the corpuls1 combines comprehensive monitoring with defibrillation and pacing capabilities at an operational weight of less than 2.7kg.
Energy Management
The efficient lithium ion battery reliably supplies power to the corpuls1 for up to 13 hours of monitoring or 230 shocks at the maximum energy level. There is no compromise for battery operation when operating in cold temperatures (down to -20 °C) and the user has the continuous assurance, as the remaining running time in minutes is always visible on screen.

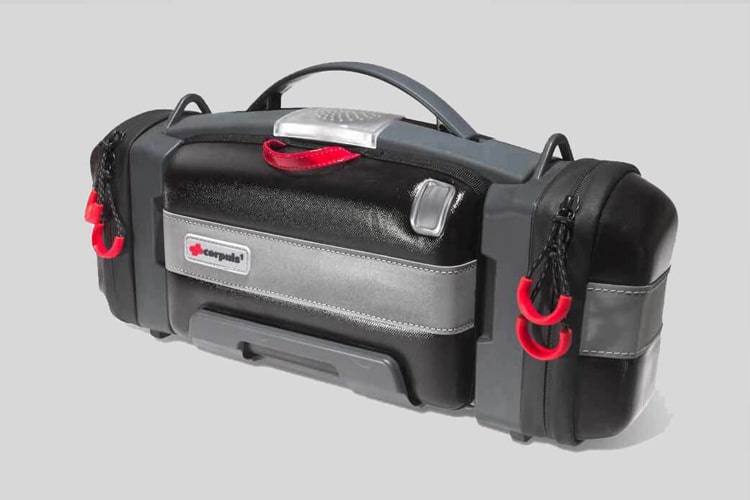

Rugged Pouches
Leads, sensors and accessories of the corpuls1 can safely be stored in the side pouches to ensure protection and easy access at all times. The rescuer does not need to spend precious time in an emergency, as all leads are pre-connected when stored in the pouches. For rapid access to the corpuls1 shock pads, the front pouch is designed with magnetic latches and can be removed quickly when needed.
Compatibility with corpuls3
Batteries, sensors, corPatch-electrodes and all leads are fully compatible in Standardized user interfaces for corpuls1 and corpuls3 allows rescuers to operate within a familiar working environment.
Post event allocation and analysis of the job files is simplified when using the corpuls.mission REVIEW software.
Specification
Technical Specification
Patient Monitoring System:
- 5.7″ colour display, backlit
- Display of up to 3 curves and up to 4 vital parameters
- 6-channel ECG
- Masimo® Rainbow® SET for SpO2, PP, PI, SpCO, SpMet, and SpHb (optional)
General Specification:
- Dust and water jet protected according to IP55
- Vibration and impact-tested according to DIN EN 1789
- Alarm indicator, loudspeaker
- Voice recording
- Lithium-ion battery
- 12 V DC power supply, 100 to 250 V AC with mains adapter
- Data management via SD® memory card
Defibrillator / Pacemaker:
- Automated external defibrillator (AED)
- Manual defibrillator
- Cardio version
- Pacemaker with 2 modes (FIX, DEMAND) (optional)
