the next generation of corpuls³

this unique design is the very first pre-hospital touch screen modular defibrillator / monitoring unit to be introduced to the emergency services market

Overview

Modular design

More flexibility through division into three function sections.

Energy Management

Intelligent algorithms ensure the best battery utilisation between the three modules.

Versatile Mounts

BS EN 1789 approved, space saving brackets for all scenarios.

Advanced Communication

Connects to Apple iOS devices and EPR systems.

Full Control

corPatch CPR sensor provides immediate feedback to the clinician and ensures high quality CPR.

8.4” Configurable Colour Display with Optional Touch Communication Profile

Up to 6 waveforms and 13 vital parameters can be displayed simultaneously.

6.5kg Weight

(C3T in basic configuration)

Operating Temperatures

Use under extreme conditions (IP55, operating temperature -20° to +55°C).

corpuls3 and iOS. Connected.

The corpuls³now fully integrates with Apples iOS and enables Ambulance Services to reap the benefit of innovations in the transfer, analysis, and interpretation of data. Learn more here.

22 Lead ECG with ECGmax

ECGmax provides users with;

Broadened diagnostics with 22 leads
Posterior leads V7–V9
Right cardiac leads V3r–V6r
Orthogonal leads X, Y, Z and Vectorloops
Only 10 electrodes, extremities and chest leads

Learn more >

Features

The Newest and Most Dynamic of the corpuls Range

The built in connectivity functions such as 4G modem, WLAN and LAN are ideal for telemedicine and the corpuls communication platform corpuls.mission. When split, the three modules communicate wirelessly, giving the paramedic flexibility of movement in challenging emergency situations

corpuls engineers have worked hard to combine the exceptional features of the already established corpuls³, and the new requirements/demands from the emergency services, creating the latest generation of defibrillator / monitoring unit. Like the corpuls³, the C3T has been designed as a complete modular system and can be split into:

“The corpuls3 is very much a complex yet capable electronic medical device. When understood, it is robust, reliable, adaptive, and accurate in the pre-hospital phase. The back-up service is quick, effective and open to challenge.”

Lee Salmon , Aircrew Critical Care Paramedic – Great North Air Ambulance

Monitoring Unit

The detachable Monitoring unit guarantees easy handling and provides an ergonomic solution for pre-hospital situations.

Large, transflective 8.4” colour display, optional with touch screen
4G modem, WLAN, LAN port
Wide printer (106mm)
Shock protection
Intuitive operating concept with JogDial
Configurable views
Softkeys and function buttons (in addition to the touch screen)
Easy 1-2-3 operation

Patient Box

The Patient Box is the “heart” of the system. Here, all vital parameters and measured values are collected, measured and stored. Values recorded via pre-connected sensors are sent wirelessly and in real time to the monitoring unit. There they are displayed and/or processed

12-lead diagnostic ECG, heart rate
ECG-Analysis and Information Software
Masimo Rainbow SET^® Technology for SpO2, PP, PI, SpCO, SpMet, SpHb
Non-invasive blood pressure measurement (SunTech^®)
Capnography with mainstream technology capONE^®
corPatch CPR-Feedback

2 channels for temperature measurement
4 channels for invasive pressure measurement
Display for vital parameters, remaining time and alarms
Acoustic alarm indicator
Microphone for audio recording
Bluetooth and CompactFlash^®

Defibrillator

The modular design of the C3T allows complete mechanical separation of the Defibrillator/Pacer. The modules remain wirelessly connected. As a result, the weight of the corpuls3 system can be significantly reduced – ideal for better mobility and flexibility in a time-critical transfer of the patient e.g. from ambulance to hospital. This allows shock delivery from a safe distance via the Monitoring Unit (using corPatch therapy electrodes).

Biphasic, rectangular waveform, impedance compensated
2 to 200 Joule, configurable energy protocol
AED and manual defibrillator
AED protocol according to the current Guidelines, update-able anytime

Pacer with FIX-, DEMAND- and OVERDRIVE mode
Pre-connected corPatch therapy electrodes in separate bag
Up to 230 shocks with fully charged battery
Use with hard paddles as well as internal shock spoons also possible

Battery Management

SOPHISTICATED ENERGY MANAGEMENT

The best energy management is the one you don’t have to think about – This is precisely the optimum we have achieved with the C3T energy management.

When you take the C3T out of the charge mount in the vehicle it is ready for operation. As soon as the device is returned to the mount the batteries are charged automatically and the C3T is ready for its next job. Time-consuming and fault-prone manual charging and changing of batteries is not required and the user can fully concentrate on the patient.

The batteries of all three modules are identical and extremely powerful. In compact mode, they simply use the battery reserves of the other modules. This concept always provides sufficient power even in long deployments to ensure comprehensive monitoring and the therapy with the defibrillator/pacer.

Battery life of up to 13 hours as a compact device
A complete charge of the batteries in the device takes approximately 2 hours
Display of the remaining battery life on the monitor’s display and on the patient box
Charging via 12 V DC or 100V AC – 240V AC (50 Hz – 60 Hz) via magnetic contact (MagCode)
Operation as a compact device even if up to two batteries are discharged

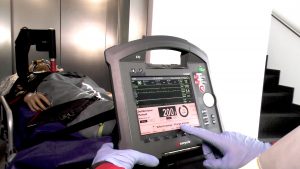

Synchronised Therapy

Resuscitation can quickly become stressful. Thanks to the Bluetooth connection, the corpuls cpr is effectively the fourth module of the corpuls³. The team is supported by the remote control of the corpuls cpr via corpuls³ and C3T. This ensures safer treatment and reduced hands-off time therefore increasing the patient’s chance of survival. The initiative synchronicity of these two modules means that a patient can be treated in any situation, such as small confined spaces, or even a moving ambulance.

Shorter Hands-off time
Perfect in tight spaces and during transport (land/air)
Easier and faster operation
Increased safety

Data transmission to C3T as well as corpuls.mission and corpuls.manager
Can be used in aed- & manual modes
From software version 4.0 (corpuls³) & software version 1.2 (corpuls cpr)

Abstract Study: Hands off time reduced with synchronised device operation, during resuscitation.

Learn more >

Brackets

VERSATILE BRACKET SOLUTIONS

There are solutions for each application: Mounts on the wall and floor, with or without swivel mechanism or safe attachment on the stretchers by different manufacturers. Almost all mounts are in conformity with DIN EN 1789 and have been tested with an acceleration of up to 24 g instead of the specified 10 g. The mounts are also available with or without integrated power supply.

Monitor mount

Shallow installation depth, low weight
Also fits monitor and patient box combinations
12 V DC, 100V AC – 240V AC (50 Hz – 60 Hz)

Patient box mount

Adaptation options to standard stretchers with wheels
Easy adaptation and unlocking
12 V DC, 100V AC – 240V AC (50 Hz – 60 Hz)

Compact device / defibrillator mount

Can be unlocked with one hand via the handle
Self-locking after 10 seconds
12 V DC, 100V AC – 240V AC (50 Hz – 60 Hz) batteries are discharged

Telemedicine & Data Management

corpuls.mission is not just a telemedicine solution – it is a medical communication platform in which the patient is brought into the main focus.

Specific knowledge from selected experts and various disciplines is crucial for adequate patient treatment. With corpuls.mission, we draw knowledge together where it is most urgently needed: during a mission.

By combining medical data, chat, video and documentation, all relevant information is collected in one place and can be viewed by the rescuers, physicians and specialists involved.

Specifically designed for the special requirements of preclinical use, corpuls.mission breaks away from old, linear communication channels. It offers the possibility to view diagnostic ECGs and photos of medication plans or mission sites as well as the live waveforms and vital parameters* of the corpuls3T and corpuls3. All of this in the usual corpuls quality.

The mission does not end when the case is closed. The recorded data is your key to the continual improvement of mission processes. Not only does this benefit future patients, but also the efficiency of your organisation. With corpuls.manager you combine this “loose” data and generate new knowledge from it. Retaining an overview – and control of your data. Delve into the details of a single mission or look at your missions as a whole. Automatic mission upload means that the latest information is always available to you, displayed in clear graphics and diagrams. Supported by artificial intelligence, you will discover new connections and save evaluation time.

Medical Fields

Mission Critical Fields

Emergency Medical Service

People trapped in cars after a traffic accident, reanimation in a small bathroom, trapped survivors or transport through a staircase – emergency medical service calls are very versatile just as the demands on personnel and devices. With its modular design, the C3T offers an optimum degree of ergonomics and flexibility in almost any situation.

Military

Regardless of whether in rough terrain, in deep snow or in a sandstorm: the C3T reliably provides extensive patient data even in the most adverse weather conditions and most versatile application situations. It is therefore the ideal patient monitor/defibrillator for military use.

Air Rescue

Almost every patient who is transported in a helicopter or aeroplane is in critical condition and must be permanently and extensively monitored. The stress factor increases enormously due to time pressure, tight spatial conditions and loud volume. The innovative device concept of the C3T optimally supports the response staff.

Hospital

In a hospital environment the C3T can be applied in almost any area due to its versatility: as a modular transport monitor for intensive care patients, as a 12-channel rest ECG device in the emergency room or as a defibrillator that is integrated in the hospital’s reanimation concept.
